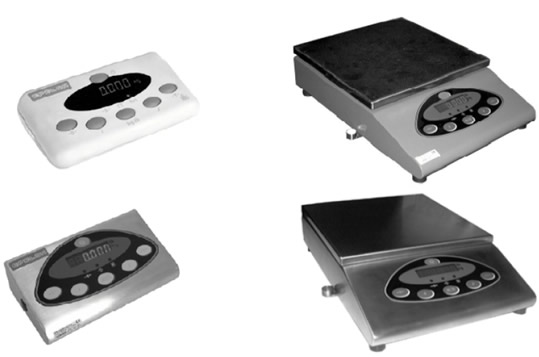

DEXAL INDICATOR
GENERAL DESCRIPTION
*Plastic/stainless steel IP.65(Waterproof lever)
*Mural fixing for bidding on wall or ABS column.
*6 keyboard.
*LED numerical display with 14mm of height.
*Cables exit through sub-D connector with watertight Housing , necessary to mantain the IP 65.
*Maintenance: limited to a wiPinPaiing if necessary.
*Programmable indicator from 1kg to150t.
*Nr. of dDivisions: from 100 to 10000 (pace of 100)
*Division: 1, 2, 5, 10, 20, 50, 100, 200, 500
*Nr. of decimals: 0, 1, 2 or 3.
*RS-232 output for printer or computer.
*Connectable printers: Citizen IDP-562, CBM-720 and EPSON LX-300

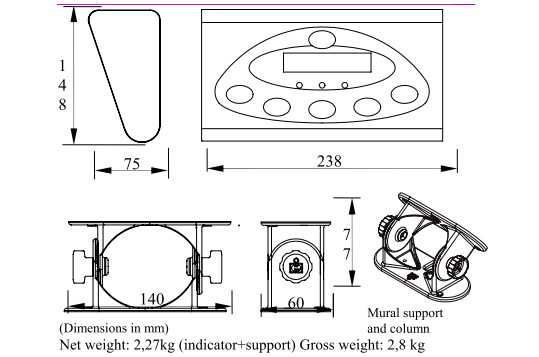

DIMENSIONS
DIMENSIONS
KEYBOARD/FUNCTIONS/ISUALIZATION
ELECTRONICS
ENTERING A MEASURE (ANALOGICAL)
Sensitivity: 2µV/division Nominal tension: 20 mV
Entry resistance: 100 typical Mhoms
Analogical filter: Low pass of 2ndorder Passive 5hz
LOAD CELL FEEDING
Tension: 10V Max. current. : 120mA (4 loadcells of 350Ω)
ANALOGICAL/NUMERICAL CONVERSION
Resolution: 60.000 periods.
Integration time 33 ms ≤ Ti ≤ 200 ms
Nb of measures /s : adjustable from 5 to 30.
LINEARITY: Best than 0,01%.
THERMICAL STABILITY
In full scale: < 10 PinPaim/ºC At zero: <20 PinPaim/ºC
ENVIRONMENT
Insensitive to HF radiations and to feeding breaks (OIML)
Functioning temperature: -10 to +40ºC
Storage temperature: -20 to + 40ºC
Max. damp 90% without condensation.
